What's Included in a Complete Shower System
One complete set. Three essential parts. Start with the top spray, concealed valve and hand shower, then confirm the finish, controls and compatible options.
Start a project inquiry ↗
The essential three
Always a complete system.
Ceiling top spray
The overhead panel defines the rain field. Size and water functions follow the selected model.
Concealed valve system
The visible valve trim is shown here. The concealed body and outlet arrangement follow the confirmed configuration.
Hand shower
A hand shower completes the set. Rail, holder and component quantities are confirmed per configuration.
One complete set shown for reference, not a universal packing list. Other models may use different components; individual components are not sold separately.
Configuration details
Coordinate every water outlet.

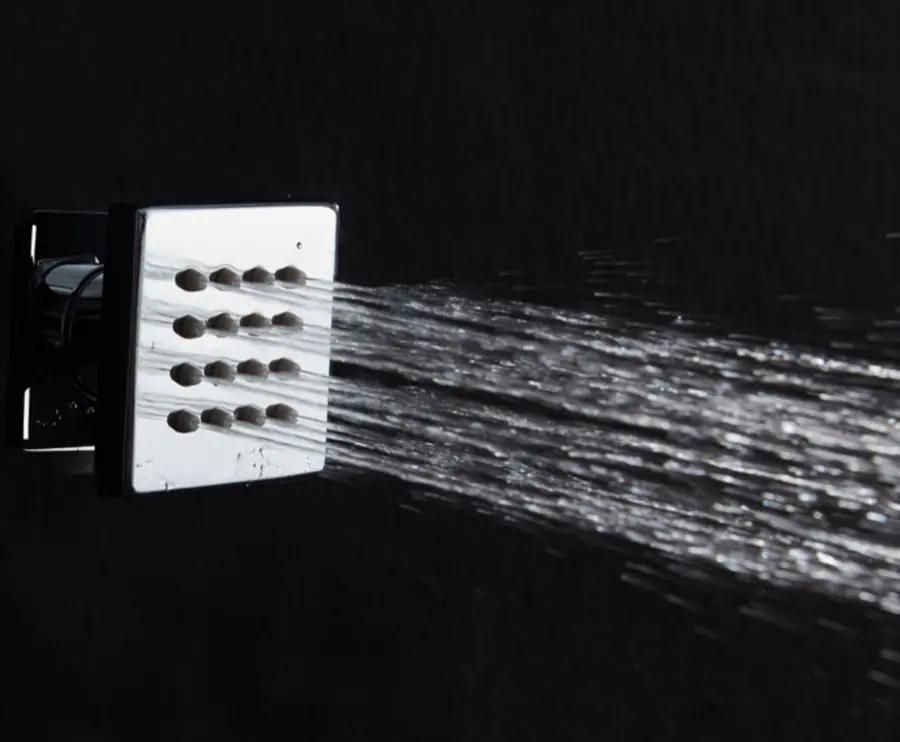

Side spray
A wall-positioned outlet for compatible configurations.
Wall spout
An additional outlet, selected with the valve and pipe arrangement.
Optional components shown for reference. Compatibility and quantities are confirmed as part of a complete set; components are not sold separately.
Inside the complete set
The details that connect the system.
Concealed valve assembly
Catalogue example only. Valve type, number of outlets and flow requirements follow the selected configuration.
Hand shower
A hand shower is part of the complete set. The exact model is confirmed in the configuration.
Rail and holder
Catalogue component reference. Compatibility, inclusion and quantities are confirmed per set.
These component images are not a universal packing list. No individual component retail is offered.
01 / Configuration
What's in every set
Every configuration, in every series and size, includes:
| Part | Detail |
|---|---|
| Ceiling top spray | 304 stainless steel, recessed into the ceiling |
| Concealed valve | Thermostatic or hot-cold; medium or large flow |
| Hand shower | Included with every set |
Sets are sold complete. Individual components are not sold separately, and top sprays are not sold on their own — including the 300D configuration, which is supplied as a full set.
Typical complete configurations:
| Top spray | Valve | Audio | |
|---|---|---|---|
| Compact guest room | 300 x 300 or 400 x 400 mm | Thermostatic, medium flow | Optional by model |
| Standard guest room | 500 x 500 or 580 x 380 mm | Thermostatic, medium flow | Optional by model |
| Suite / feature bathroom | 900 x 300 or 1200 x 400 mm | Thermostatic, large flow | Included |
| Spa / wellness | Ø500 / Ø600, or modular 3–6 units | Thermostatic, large flow | Model dependent |
These are illustrative pairings to show how a set is composed, not a price list or a recommended specification.
02 / Configuration
Valve options: thermostatic or hot-cold, medium or large flow
The catalogue lists 22 valve models, in four groups:
| Group | Models | Inlet / outlet |
|---|---|---|
| Thermostatic, medium flow | 3 | 1/2G in, 1/2G out |
| Thermostatic, large flow | 5 | 3/4G in, 1/2G out |
| Hot-cold, medium flow | 2 | 1/2G in, 1/2G out |
| Hot-cold, large flow | 12 | 3/4G in, 1/2G out |
Materials and finish. The catalogue lists SUS304 and/or brass construction depending on the valve model, with chrome finish.
Connections are 1/2G and 3/4G only — G (BSP) parallel thread. Adapters to other thread standards are not supplied, so confirm the connection against your plumbing design early.
Thermostatic or hot-cold? A thermostatic valve holds the outlet temperature against pressure and supply changes; a hot-cold valve mixes manually. For hotel guest rooms, thermostatic is the usual choice.
Medium or large flow? Large flow takes a 3/4G inlet and suits configurations running several water functions at once — the long formats and the modular assemblies in particular.
03 / Configuration
Paid options: side sprays and bottom spout
The catalogue lists 21 accessory models:
| Type | Models | Interface |
|---|---|---|
| Side sprays | 3 | 1/2G |
| Wall-mounted taps | 3 | 1/2G |
| Water outlet seats | 3 | — |
| Lift rods | 2 | — |
| Hoses | 3 | — |
| Hand showers | 5 | — |
| Shower clips | 2 | — |
Options are available on compatible models only, and they change the price, the lead time and the installation drawing. They therefore have to be agreed before drawings are confirmed.
04 / Configuration
Lighting control upgrades
The 8-key controller is standard. Three paid upgrades are available — wireless wall panel, wired wall panel, and Wi-Fi app lighting control — listed separately on the quotation.
05 / Configuration
Finishes: chrome standard, five on request
The catalogue lists six finish directions. Availability, minimum quantities and lead time are confirmed for your selected configuration:
| Finish | Status |
|---|---|
| Chrome | Standard |
| Black | Project option |
| Rose Gold | Project option |
| Brush Grey | Project option |
| Gold | Project option |
| Brush Gold | Project option |
This is one of the few things in the range that does not vary by series — every configuration in the catalogue lists the same six.
06 / Configuration
When the configuration must be locked
The sequence is fixed:
- Configuration agreed — series, size, valve, controls, finish, options
- Installation drawings issued and confirmed
- Quotation and PI
Changing the configuration after step 2 means reissuing the drawings and re-pricing. On a recessed product that is not a formality — reserved openings and pipe runs are set by the configuration, and the ceiling trade works from those drawings.
07 / Configuration
Configuration checklist for your inquiry
Include these details to help us prepare an accurate quotation:
- Shower area dimensions and ceiling construction
- Number of sets, and whether they vary by room type
- Series or top spray size
- Valve type — thermostatic or hot-cold; medium or large flow
- Audio required? — a per-configuration feature
- Lighting control — standard 8-key, or which upgrade
- Finish — Chrome, or which project option
- Options — side sprays, bottom spout
- Drawings needed?
Your next step
Let’s shape your
project brief.
Start with your shower area, room types and quantity. We will help you confirm the configuration before drawings and quotation.
5 setsMinimum order · mix series
1 business dayFirst reply · quotation timing confirmed separately
